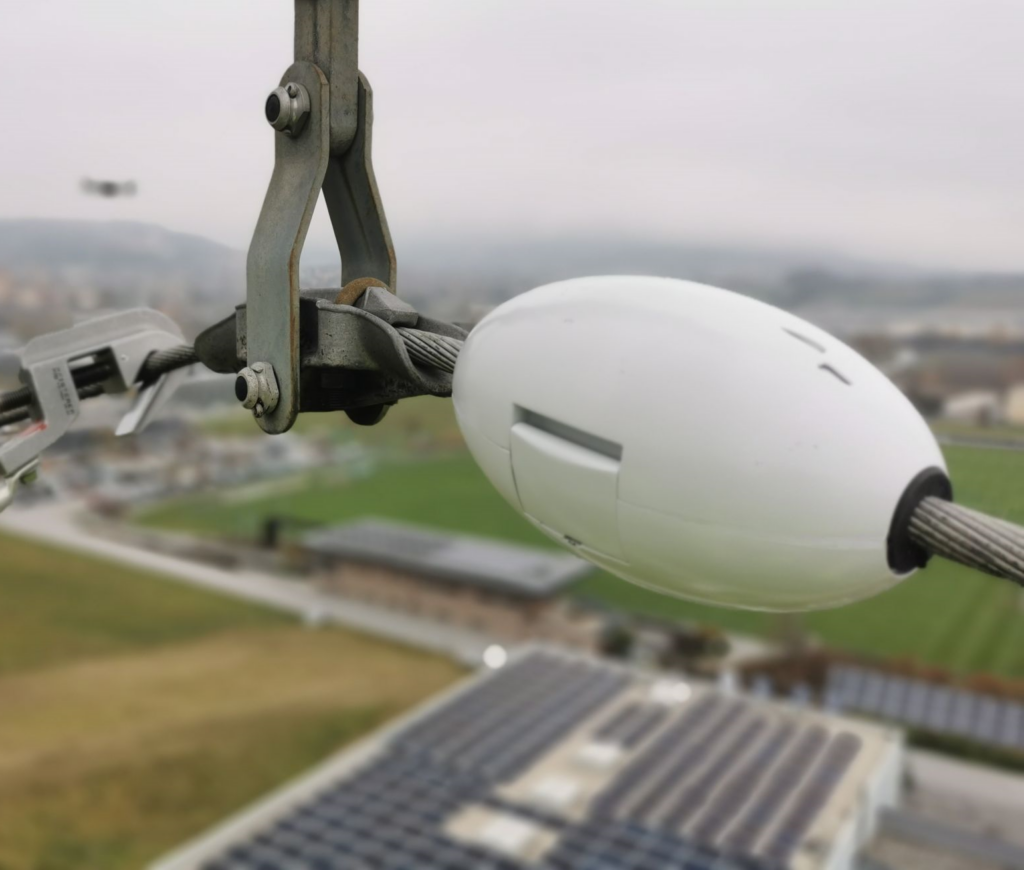

The gridpulse® VIBRATION sensor is a unique solution for evaluating vibration properties and dynamics directly on the conductor. Leveraging advanced technology, this sensor redefines the standards of motion monitoring with its exceptional features.
Unlock precise motion analysis with advanced vibration monitoring.
| Outside dimensions | 150 x 200 mm |
| Diameter conductor range | from 15 to 45 mm |
| Weight | <600g |
| Harvesting of energy from conductor | YES |
| GPS localisation | integrated |
| GPS time synchronsisation | integrated |
| Frequency analyser | up to 100Hz |
| Operating Temperature range | from -40 to +85°C |
| Vibration performance | acc. to IEC 61897 |
| Sample period | up to 400 measurements per second |
